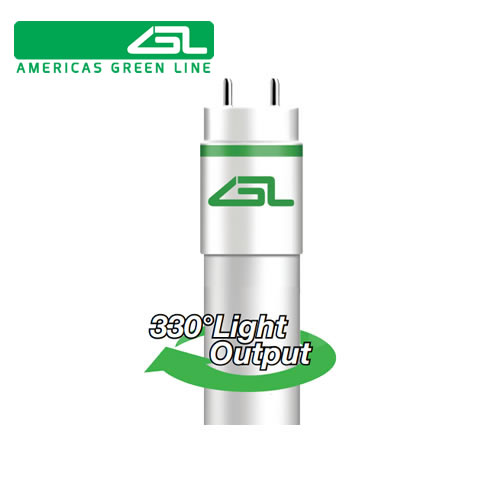

T8 TUBES
T8 B-Series LED
T8 B-Series LED
AGL-360T8-9-B-40k
Linear Bypass 2Ft Type B- Lifespan
- Input Voltage
- Power
- Lumen
- Beam Angle
- Equivalent
- CRI
- Color Temp
- Remarks
- 70,000
- 120/277V
- 9W
- 1200
- 360°
- 17W T8
- >=85
- 4000K~5000K
- UL,DLC
T8 B-Series LED
AGL-360T8-10.5-B-40K
Linear Bypass 4Ft Type B- Lifespan
- Input Voltage
- Power
- Lumen
- Beam Angle
- Equivalent
- CRI
- Color Temp
- Remarks
- 70,000
- 120/277V
- 10.5W
- 1700
- 360°
- 32W T8
- >=85
- 4000K~5000K
- UL,DLC,NSF
T8 B-Series LED
AGL-360T8-12.5-B-40K
Linear Bypass 4FT Type B- Lifespan
- Input Voltage
- Power
- Lumen
- Beam Angle
- Equivalent
- CRI
- Color Temp
- Remarks
- 70,000
- 120/277V
- 12.5W
- 1875
- 360°
- 32W T8
- >=85
- 4000K~5000K
- UL,DLC,NSF
T8 B-Series LED
AGL-360T8-14.5-B-40K
Linear Bypass 4FT Type B- Lifespan
- Input Voltage
- Power
- Lumen
- Beam Angle
- Equivalent
- CRI
- Color Temp
- Remarks
- 70,000
- 120/277V
- 14.5W
- 2200
- 360°
- 32W T8
- >=85
- 4000K~5000K
- UL,DLC,NSF
T8 B-Series LED
AGL-360T8-16.5-B-40K
Ballast Friendly 4FT Type B- Lifespan
- Input Voltage
- Power
- Lumen
- Beam Angle
- Equivalent
- CRI
- Color Temp
- Remarks
- 70,000
- 120/277V
- 16.5W
- 2475
- 360°
- 32W T8
- >=85
- 4000K~5000K
- UL,DLC,NSF
T8 B-Series LED
AGL-360T8-18.5-B-40K
Linear Bypass 4FT Type B- Lifespan
- Input Voltage
- Power
- Lumen
- Beam Angle
- Equivalent
- CRI
- Color Temp
- Remarks
- 70,000
- 120/277V
- 18.5W
- 2590
- 360°
- 32W T8
- >=85
- 4000K~5000K
- UL,DLC,NSF
T8 B-Series LED
AGL-360T8-22-B-40K
Linear Bypass 4FT Type B- Lifespan
- Input Voltage
- Power
- Lumen
- Beam Angle
- Equivalent
- CRI
- Color Temp
- Remarks
- 70,000
- 120/277V
- 22W
- 2882
- 360°
- 32W T8
- >=85
- 4000K~5000K
- UL,DLC,NSF
T8 B-Series Dimmable
AGL-360T8-9-B-xxK-DIM-120V
120V Line Voltage Dimmable- Lifespan
- Input Voltage
- Power
- Lumen
- Beam Angle
- Equivalent
- Dimmable
- CRI
- Color Temp
- Remarks
- 70,000
- 120/277V
- 9W
- 1200
- 360°
- 17W T8
- 120V Line Voltage
- >=85
- 4000K~5000K
- UL,DLC,NSF
T8 B-Series Dimmable
AGL-360T8-14.5-B-xxK-DIM120V
120V Line Voltage Dimmable- Lifespan
- Input Voltage
- Power
- Lumen
- Beam Angle
- Equivalent
- Dimmable
- CRI
- Color Temp
- Remarks
- 70,000
- 120/277V
- 14.5W
- 1900
- 360°
- 32W T8
- 120V Line Voltage
- >=85
- 4000K~5000K
- UL,DLC,NSF
T8 B-Series Dimmable
AGL-360T8-18.5-B-xxK-DIM277V
120V Line Voltage Dimmable- Lifespan
- Input Voltage
- Power
- Lumen
- Beam Angle
- Equivalent
- Dimmable
- CRI
- Color Temp
- Remarks
- 70,000
- 120/277V
- 18.5W
- 2590
- 360°
- 32W T8
- 277V Line Voltage
- >=85
- 4000K~5000K
- UL,DLC,NSF
Features
- Patented 360º Beam angle technology (Simulates T8 fluorescent)
- Provides uplight for shadow free fixtures
- Glass tube (even heat distribution) with saftey coating
- No visible diodes
- Clean even light distribution
- 70,000+ Hour lifespan
- Instant on (even in cold temperature)
- Eliminates ballasts and maintenance
- Remove existing ballast (consumes less energy), No future replacement cost
- Use any existing lens type – creates no shadows
- 5 year warranty
- 100% Recyclable
- Increases security system camera resolution / safety
- Eligible for commercial utility rebates
- LED lamps contain no mercury
- LED’s long life-span minimizes maintainance and labor
- No UV or IR radiation
- Reuses existing luminaire housings
