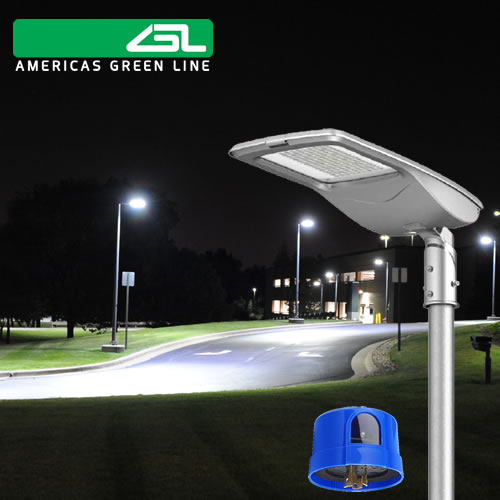

ROADWAY FIXTURE
Roadway Series Shoebox
AGL-MRL-30-xxK
30 Watt Mini Roadway Series Shoebox- Lifespan
- Dimmable
- Input Voltage
- Power
- Lumen
- CRI
- Color Temp
- Remarks
- 170,000
- 0-10V
- 120/277V
- 30W
- 3600
- >=70
- 4000~5000K
- UL,DLC
AGL-MRL-50-xxK
50 Watt Mini Roadway Series Shoebox- Lifespan
- Dimmable
- Input Voltage
- Power
- Lumen
- CRI
- Color Temp
- Remarks
- 170,000
- 0-10V
- 120/277V
- 50W
- 6000
- >=70
- 4000~5000K
- UL,DLC
AGL-MRL-70-xxK
70 Watt Mini Roadway Series Shoebox- Lifespan
- Dimmable
- Input Voltage
- Power
- Lumen
- CRI
- Color Temp
- Remarks
- 170,000
- 0-10V
- 120/277V
- 50W
- 8400
- >=70
- 4000~5000K
- UL,DLC
AGL-MRL-90-xxK
90 Watt Mini Roadway Series Shoebox- Lifespan
- Dimmable
- Input Voltage
- Power
- Lumen
- CRI
- Color Temp
- Remarks
- 170,000
- Optional
- 120/277V
- 90W
- 10800
- >=70
- 4000~5000K
- UL,DLC
AGL-MRL-120-xxK
120 Watt Mini Roadway Series Shoebox- Lifespan
- Dimmable
- Input Voltage
- Power
- Lumen
- CRI
- Color Temp
- Remarks
- 170,000
- Optional
- 120/277V
- 120W
- 14400
- >=70
- 4000~5000K
- UL,DLC
AGL-MRL-150-xxK
150 Watt Mini Roadway Series Shoebox- Lifespan
- Dimmable
- Input Voltage
- Power
- Lumen
- CRI
- Color Temp
- Remarks
- 170,000
- Optional
- 120/277V
- 150W
- 18000
- >=70
- 4000~5000K
- UL,DLC
AGL-MRL-180-xxK
180 Watt Mini Roadway Series Shoebox- Lifespan
- Dimmable
- Input Voltage
- Power
- Lumen
- CRI
- Color Temp
- Remarks
- 170,000
- Optional
- 120/277V
- 180W
- 21600
- >=70
- 4000~5000K
- UL,DLC
Features
- Industry Leading LED diodes
- High Performance Drivers
- Die-cast aluminum housing
- 5-year warranty
- 120, 277 and 480 input voltage options
- No Tools required to access drivers and wiring
- Vibration tested
- Color options: Silver, Black, Bronze or Custom
- IP66
- Nema 3 Pin, 5 Pin or 7 Pin Optional
- Photocell, Timing Control Shorting Cap Options
- Full range of mounting options for Poles or Walls
