LINEAR HIGHBAY

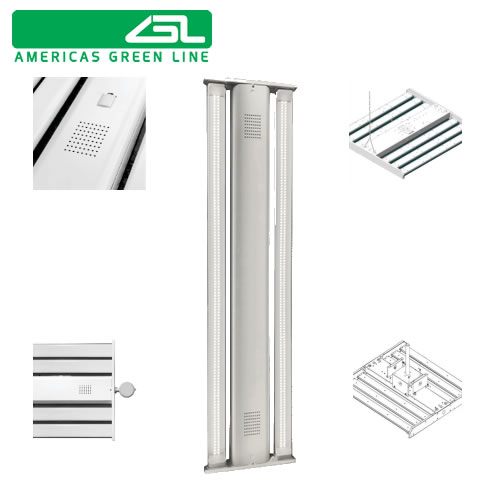

Linear D10 High Bay Series
AGL-AR-D10-42-140-50K
4Ft 2 Row Linear High Bay- Lifespan
- Dimmable
- Input Voltage
- Power
- Lumen
- Beam Angle
- Dimensions
- CRI
- Color Temp
- Remarks
- 100,000
- 0-10V
- 120/277V/347
- 140W
- 21700
- 60°/ 90°
- 48.8” x 14.7”x 2.1”
- >=85
- 5000K
- UL,DLC
AGL-AR-D10-42-200-50K
4Ft 2 Row Linear High Bay- Lifespan
- Dimmable
- Input Voltage
- Power
- Lumen
- Beam Angle
- Dimensions
- CRI
- Color Temp
- Remarks
- 100,000
- 0-10V
- 120/277V/347
- 200W
- 31000
- 60°/ 90°
- 48.8” x 14.7”x 2.1”
- >=85
- 5000K
- UL,DLC
AGL-AR-D10-42-280-50K
4Ft 2 Row Linear High Bay- Lifespan
- Dimmable
- Input Voltage
- Power
- Lumen
- Beam Angle
- Dimensions
- CRI
- Color Temp
- Remarks
- 100,000
- 0-10V
- 120/277V/347
- 280W
- 43400
- 60°/ 90°
- 48.8” x 14.7”x 2.1”
- >=85
- 5000K
- UL,DLC
AGL-AR-D10-42-330-50K
4Ft 2 Row Linear High Bay- Lifespan
- Dimmable
- Input Voltage
- Power
- Lumen
- Beam Angle
- Dimensions
- CRI
- Color Temp
- Remarks
- 100,000
- 0-10V
- 120/277V/347
- 330W
- 51150
- 60°/ 90°
- 48.8” x 14.7”x 2.1”
- >=85
- 5000K
- UL,DLC
AGL-AR-D10-42-480-50K
4Ft 2 Row Linear High Bay- Lifespan
- Dimmable
- Input Voltage
- Power
- Lumen
- Beam Angle
- Dimensions
- CRI
- Color Temp
- Remarks
- 100,000
- 0-10V
- 120/277V/347
- 480W
- 74400
- 60°/ 90°
- 48.8” x 14.7”x 2.1”
- >=85
- 5000K
- UL,DLC
Features
- Industry Leading LED diodes
- High Performance SR Drivers
- 5-year Warranty
- Chain or pendant mounting options
- 0-10V dimming
- Low glare / Even light distribution
- 120 / 277 / 347 / 480 input voltage options
- Optics clear or frosted option
- Wireless controls optional
- Occupancy sensor ready
- Emergency battery ready
- Wire guard optional
- 100% Recyclable
- No UV or IR radiation
